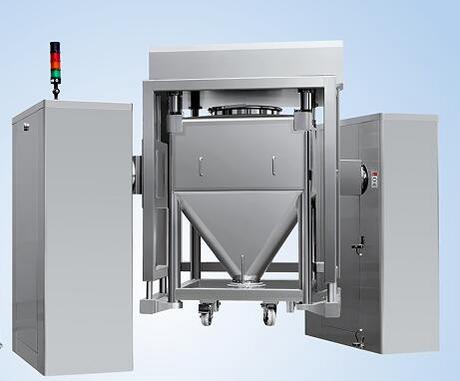

HZD自动提升料斗混合机
AUTOMATIC LIFTING HOPPER MIXER
用途Purpose
该机主要用于制药工业固体制剂生产中的颗粒与颗粒、颗粒与粉末、粉未和粉末等物料的混合，该机能自动完成提升、夹持、混合、下降等全部动作。配一台自动提升料斗混合机及多个不同规格的混合料斗，就能满足多品种的混合要求，是药厂总混的理想设备。同时在制药、化工、食品等行业广泛使用。
This machine is mainly used for the mixing of particles and particles, particles and powder, powder and powder in the production of solid preparations in the pharmaceutical industry. The machine can automatically complete all actions such as lifting, clamping, mixing, and lowering. Equipped with an automatic lifting hopper mixer and multiple mixing hoppers of different specifications, it can meet the mixing requirements of multiple varieties. It is an ideal equipment for total mixing in pharmaceutical factories. At the same time, it is widely used in the pharmaceutical, chemical, food and other industries.
原理Principle
该机由机座、回转体、驱动系统、提升系统、制动系统及控制系统组成。工作时，将混合料斗推到回转体内，按下触摸屏上“确认”键，就能自动将混合料斗提升到位，并自动夹紧。压力传感器得到夹紧信号后，驱动系统工作，按设定的时间、转速进行混合;达到设定的参数后，回转体就能自动垂直停止，同时制动系统工作，混合结束；然后提升系统工作，回转体内的混合混合料斗下降到位，自动停止，并打印工艺数据，将混合料斗推出转到下一工序。
The machine is composed of a base, a revolving body, a drive system, a lifting system, a braking system and a control system. When working, push the mixing hopper into the revolving body and press the "confirm" button on the touch screen to automatically lift the mixing hopper into place and clamp it automatically. After the pressure sensor gets the clamping signal, the drive system works and mixes according to the set time and speed; after reaching the set parameters, the revolving body can automatically stop vertically, and the brake system works at the same time, and the mixing ends; then the lifting system works , The mixing hopper in the revolving body is lowered to the position, automatically stops, and the process data is printed, and the mixing hopper is pushed out to the next process.
特点Feature
◆PLC程序全自动控制，人机界面操作；
◆红外线安全装置保护混合作业工作区；
◆设有料斗落地、提升夹持、混合后垂直定位、启停减速、传动扭矩保护等安全连锁；
◆混合架采用优质全不锈钢SS304材质精制而成；
◆混合效率高，可兼容不同容积的料斗，实现一机多用，满足连续化混合作业；
◆欧盟CE认证，多项专利技术的结晶，品质成熟卓越；
◆整机符合药品生产的GMP要求。
◆PLC program fully automatic control, man-machine interface operation;
◆Infrared safety device protects the mixed working area;
◆Equipped with safety chains such as hopper landing, lifting and clamping, vertical positioning after mixing, start-stop deceleration, transmission torque protection, etc.;
◆The mixing rack is made of high-quality all stainless steel SS304;
◆High mixing efficiency, compatible with hoppers of different volumes, realizing multiple functions in one machine, and meeting continuous mixing operations;
◆EU CE certification, the crystallization of a number of patented technologies, mature and excellent quality;
◆The whole machine meets the GMP requirements for pharmaceutical production.
