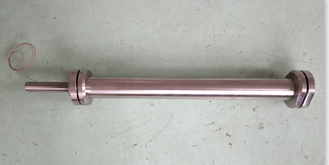

50mm弹簧柱技术参数
|
柱 管 |
内径 |
50mm |
|
长度 |
650mm |
|
|
内壁加工工艺 |
珩磨，抛光 |
|
|
内壁表面粗糙度 |
Ra≤0.4um |
|
|
柱床高度 |
300mm |
|
|
最小柱床高度 |
50mm |
|
|
耐压 |
260bar |
|
|
网 板 |
孔径 |
2um |
|
材质 |
316L粉末烧结网板 |
|
|
高压密封圈 |
材质 |
PTFE |
|
结构 |
弹簧预紧V型密封圈 |
|
|
活塞 |
材质 |
316L |
|
分配方式 |
扇形 |
|
|
连接 |
进口/出口 |
1/16或者1/8管路 |
所有与液体接触材质包括：316L，PTFE，PEEK
Technical parameters of 50mm spring post
|
Post |
Tube inner diameter |
50mm |
|
Length |
650mm |
|
|
Inner wall processing technology |
honing, polishing |
|
|
The surface roughness of the inner wall |
Ra≤0.4um |
|
|
The height of the column bed i |
300mm |
|
|
The minimum bed height |
50mm |
|
|
Withstand pressure |
260bar |
|
|
Net |
Plate aperture |
2um |
|
Material |
316Lpowder sintered mesh plate |
|
|
High Pressure Seal |
Material |
PTFE |
|
Structure |
Spring-loaded V-ring |
|
|
Piston |
Material |
316L |
|
Distribution |
Sectoral |
|
|
Connect |
inlet/outlet |
1/16 or 1/8 tubing |
All materials that come into contact with liquids include: 316L, PTFE, PEEK
