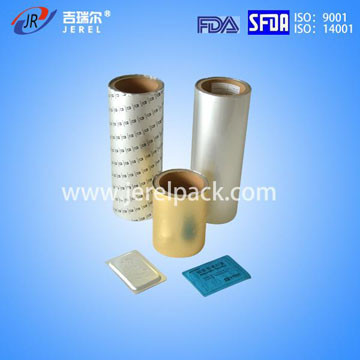

Structure: PA25-30/AL50-75/VC(TROPICAL FOIL)
Aluminum foil, soft
Dull side lacquer laminated to the PA film
Bright side lacquer coated VC
|
structure |
|
|
PA25-30/Alu50 |
|
PA25-30/Alu60 |
|
PA25-30/Alu75 |
|
OPA film |
micron |
25±0.5 |
25±0.5 |
25±0.5 |
|||
|
Adhesive |
g/m2 |
5±0.5 |
5±0.5 |
5±0.5 |
|||
|
Alu foil |
micron |
50±3 |
|
60±3 |
75±3 |
||
|
VC lacquer |
g/m2 |
4±0.5 |
4±0.5 |
4±0.5 |
|||
|
Total thickness |
micron |
84±5 |
94±5 |
94±5 |
|||
|
Total weight |
g/m2 |
173.2±5 |
200.2±5 |
240.7±5 |
Application: for tablets or capsules and other solid pharmaceutical packaging.
3.Aluminum Alloy: 8021-O
4.Physical property
Appearance Flat,even and clean. No perforation, peculiar odor impurity, conglutination, No
obvious abnormal (separation, damage,air bubble,wrinkle,dirt) between the layers.
Quantity of penetrated steam ≤0.5g/(m2.24h)
Quantity of penetrated oxygen ≤0.5cm3/(m2.24h.0.1Mpa)
Tear strength OPA/AL≥8.0N/15MM
AL/PVC≥7.0N/15MM
Sealing strength ≥6.0N/15MM
5.Clearance Certificate
FDA and ISO9001:2008 and ISO14001 certified company
workshops are "clean-rooms" conform to 100K class by GMP standard
6.Recommendations as to store conditions
Max.12 Months at: Temperature 15-35℃ and Relative Humidity: 30-65%
Inner packing: each roll to be wrapped with sack polyethylene and plastic plug.
Outer packing:carton packing,wrap by film then pallet packing.
