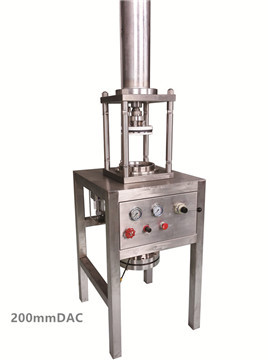

200mmDAC技术参数
|
柱管 |
内径 |
200mm |
|
长度 |
650mm（可定制） |
|
|
内壁加工工艺 |
珩磨，抛光 |
|
|
内壁表面粗糙度 |
Ra≤0.4um |
|
|
柱床高度 |
300mm |
|
|
耐压 |
100bar |
|
|
滤板 |
孔径 |
5um |
|
材质 |
316L编织金属滤板 |
|
|
密封圈 |
材质 |
PTFE |
|
结构 |
弹簧预紧V型密封圈 |
|
|
动力单元 （2选1） |
液压站（气动） |
空气消耗量MAX1200NL/min |
|
液压站（电动） |
电源交流380V，3Kw |
|
|
控制单元 |
安全阀 |
具有超压保护功能 |
|
切换阀 |
切换液压缸方向（上、下、Hold） |
|
|
压力调节阀 |
调节泵输出压力 |
|
|
压力表 |
工作时气压、油压 |
|
|
急停按钮 |
急停 |
|
|
连接 |
进口/出口 |
OD6mm管路，M14×1.5螺纹 |
|
空气 |
10mm气管快插接头 |
|
|
|
|
|
|
安装运行要求 |
工作温度及湿度 |
10~40℃，≤50%RH |
|
外形尺寸 |
请咨询 |
|
|
重量 |
请咨询 |
|
|
运行条件 |
8bar压缩空气 |
|
|
油箱容积 |
18L |
|
|
油压与柱床压比例 |
1.8:1 |
所有与液体接触材质包括：316L，PTFE，PEEK

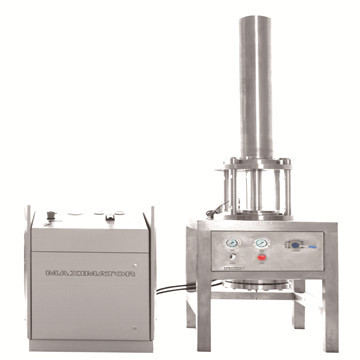

200mmDAC Technical parameters
|
Column tubes |
Inner diameter |
200mm |
|
length |
650mm（Customizable） |
|
|
Inner wall processing technology |
Honing, polishing |
|
|
Inner wall surface roughness |
Ra≤0.4um |
|
|
Column bed height |
300mm |
|
|
Pressure-resistant |
100bar |
|
|
Filter plates |
aperture |
5um |
|
Material |
316LBraided metal filter plates |
|
|
Seals |
Material |
PTFE |
|
structure |
Spring-loaded V-rings |
|
|
Power unit (Choose 1 out of 2) |
Hydraulic station (pneumatic) |
Air consumptionMAX1200NL/min |
|
Hydraulic unit (electric) |
Power AC 380V，3Kw |
|
|
Control unit |
relief valve |
It has the function of overpressure protection |
|
Switching valves |
Switching cylinder direction (up, down, Hold) |
|
|
Pressure regulating valves |
Adjust the pump output pressure |
|
|
Pressure gauge |
Air pressure and oil pressure during operation |
|
|
E-STOP button |
Emergency stop |
|
|
connect |
Import/Export |
OD6mm tubing, M14×1.5 thread |
|
air |
10mm tubing push-in fittings |
|
|
Installation and operation requirements |
Operating temperature and humidity |
10~40℃，≤50%RH |
|
Dimensions |
Please contact us |
|
|
weight |
Please contact us |
|
|
Operating conditions |
8bar pressurized air |
|
|
Fuel tank volume |
18L |
|
|
Ratio of oil pressure to column bed pressure |
1.8:1 |
All materials that come into contact with liquids include: 316L, PTFE, PEEK
