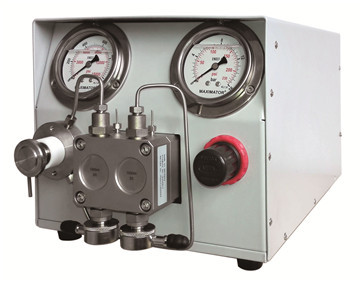

该设备采用气动增压原理，驱动气体压力为0.1-0.8MPa,压力100MPa,是湿法填充高效液相色谱柱的专用设备。
特点：具有压力高，升压快，脉动小，便携，结构简单，装填、拆卸及维修使用方便，外型美观等特点。
优势：我公司色谱装柱机填装的高效液相色谱柱性能稳定，柱效高，对称性好，是较为理想的装柱设备。并配有不同规格匀浆罐，可填装不同型号的液相色谱柱（如ID4.0mm、ID4.6mm等柱管）适合科研单位小型化研发试制。
Driving gas pressure is 0.6-1.0MPa and the maximum pressure is 100MPa. It is the specified equipment for wet filling HPLC column. The system has the characteristics of high pressure, fast boost, low backpressure, portable, simple structure, easy packing and disassembling, easy maintenance and use, good appearance and so on.
Filling bed height: variable, the range is 100mm-500mm (other specifications need to be customized). Our company’s chromatography column packing machine can pack HPLC column with the steady performance, high column efficiency, good symmetry, and no collapse. It is the ideal equipment for column packing. It is also equipped with different specifications of the joints, to be filled with different types of the liquid chromatography column. It is suitable for scientific research institutions to do miniature research and development trial production.
技术参数
|
输出压力 |
≦100Mpa |
如需更高压力可定制 |
|
输出流量 |
≦3.3L/min |
无负荷情况下流速 |
|
适用范围 |
ID≦50mm色谱柱 |
柱床高度≦300mm（可定制） |
|
空气消耗 |
≦1.5Nm3/min |
干净压缩空气 |
|
Output Pressure |
≦100Mpa |
For higher pressure, it can be customized |
|
Output flow |
≦3.3L/min |
Maximum flow rate when no load |
|
Applicable Range |
ID≦50mm chromatography column |
Column bed height is generally 300 mm |
|
Air consumption |
≦1.5Nm3/min |
Clean compressed air |
|
4.6mm |
Volume 40ml |
Filling diameter 4.6 mm Column |
|
10mm |
Volume 100ml |
Filling diameter 10 mm Column |
|
20mm |
Volume 390ml |
Filling diameter 20 mm Column |
|
30mm |
Volume 490ml |
Filling diameter 30 mm Column |
|
50mm |
Volume 1040ml |
Filling diameter 50 mm Column |
