本机广泛适用于药品、保健品、营养滋补品、食品、日用化妆品、文具用品、VCD磁带、扑克、香烟等各种中小型盒装物品的裹包。具有防伪防潮、提高产品附加值、产品档次和产品装潢质量之功能。是一种理想的盒式三维包装设备。

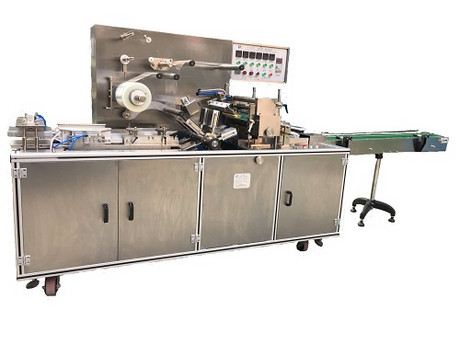

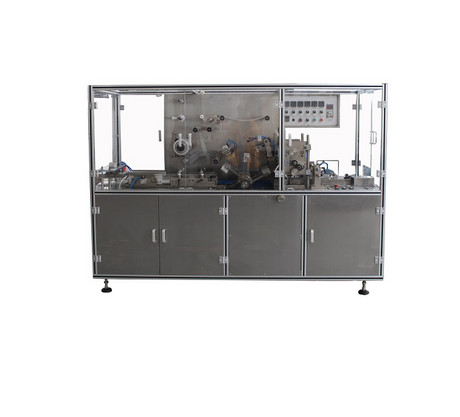

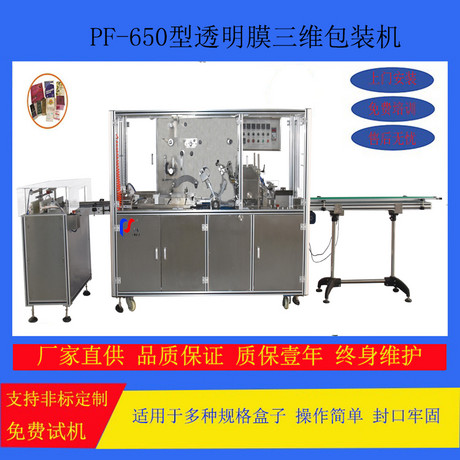

PF-650 transparent film 3D packaging machine is widely used in medicine, health care products, nutritional tonics, food, daily cosmetics, stationery, VCD tape, poker, cigarettes and other small and medium-sized packaged items. It has the function of anti-counterfeiting and moisture-proof, improving the added value of products, product grade and product decoration quality. It is an ideal box-type three-dimensional packaging equipment.
性能与结构特点
Performance and structure characteristics
1、包装速度可调性：
本机采用变频调速装置，可根据工作要求不同以改变包装速度。
1. Adjustable packaging speed:
The machine adopts frequency conversion speed regulating device, which can change the packaging speed according to different working requirements.
2、转塔转动采用精密凸轮分度箱，使整机在高速运转时不会抖动，保证稳定性。
2, the turret rotation adopts precision CAM indexing box, so that the whole machine will not shake when running at high speed, to ensure stability.
3、包装尺寸范围可调性：
包装品的尺寸规格变化时，本机只需更换模具，并进行适当的调节即可。
3. Adjustable packaging size range:
When the size of the packaging changes, the machine only needs to replace the mold and make appropriate adjustments.
4、热封温度可调性：
本机对封口的加热板采用了微电脑控制，可随外界环境变化，自行设置加热温度，并能保持在所设置的温度范围内
4. Adjustable heat seal temperature:
The machine adopts microcomputer control for the sealed heating plate, and can set the heating temperature by itself with the change of external environment, and can keep in the set temperature range
5、可加装安全防护罩、门（防护门为透明有机玻璃）
5, can be installed with safety cover, door (protective door is transparent plexiglass)
|
1 |
生产效率 |
40-70包/分 |
|
2 |
电源 |
3N AC 380V 50HZ |
|
3 |
电机功率 |
0.75KW |
|
4 |
加热器总功率 |
4.1KW |
|
5 |
外形尺寸 |
（L）2250×（W）900×（H）1560 |
|
6 |
输送台尺寸 |
（L）1600×（W）260×（H）850 |
|
6 |
重量 |
约1200KG |
|
7 |
工作气压 |
0.4-0.5Mpa |
