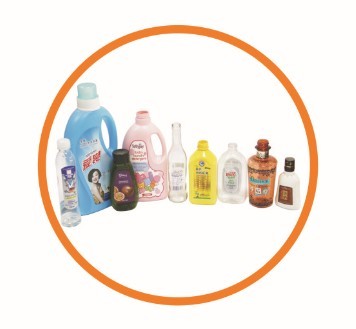

该设备主要适用于医药、食品、日化等其它轻工业中的圆形、方形、扁瓶等同类产品的单双侧面圆周贴标。一机多用，同时适合方瓶、扁瓶、圆瓶使用，即可单机使用，亦可满足联线使用。
产品简介
◆ 采用触摸屏操作简单直观、功能齐全，具有丰富的在线帮助功能
◆ 机器结构简单，紧凑，便于操作及维护
◆ 采用伺服驱动，送标速度稳定、可靠
◆ 一台机器可完成扁瓶、方瓶多种规格的自动侧面贴标
◆ 双侧链条校正装置确保物料的对中性
◆ 特殊弹性顶压装备确保物料的稳定性
◆ 贴标速度、输送速度、分瓶速度可实现无级调速，根据需要进行调整
◆ 前、后段可选连接流水线
◆ 可选配置（打码机）可在线打印生产日期和批号，减少瓶子包装工序，提高生产效益
The labeling machine is mainly used for circular, square, flat bottles and other similar products in medicine, food, daily chemical and other light industries. One machine multi-purpose, suitable for square bottle, flat bottle, round bottle use, can be used alone, can also meet the line use.
Product introduction
◆ Simple and intuitive touch screen operation, complete functions, with a wealth of online help functions
◆ Machine structure is simple, compact, easy to operate and maintain
◆ Servo drive, stable and reliable speed
◆ One machine can complete the automatic side labeling of flat bottles and square bottles
◆ Double-side chain calibration device to ensure material neutrality
◆ Special elastic jacking equipment ensures the stability of materials
◆ Labeling speed, conveying speed, bottle speed can realize stepless speed regulation, adjust according to need
◆ The front and back sections can be connected to the assembly line
◆ Optional configuration (coding machine) can print production date and batch number online, reduce bottle packaging process, improve production efficiency
|
型号/技术参数：PF-3510 |
|
|
贴标速度： |
30-80件/分(与物料及标签尺寸有关) |
|
贴标精度： |
±1.0mm(不计物料及标签尺寸) |
|
标签尺寸： |
（L）20-300mm （H）10-180mm |
|
物料尺寸： |
（W）20-200mm （H）40-300mm |
|
适用标签卷内径： |
φ76mm |
|
适用标签卷外径： |
最大Φ350mm |
|
整机尺寸： |
（L）2400*（W）1000*（H）1700(mm) |
|
使用电力： |
AC220V 50Hz/60Hz 2000W |
