特点Feature:

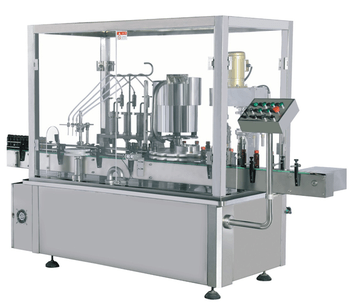

Automatic Filling and Capping machine for the application of light liquid filling and capping for plastic or glass bottles. The machine is composed by a conveyor, SS316L volumetric piston pump, top-bottom filling nozzles, liquid buffer tank, bottle index wheel, capping system.
自动灌装旋盖机适用于塑料或玻璃瓶的轻液体灌装旋盖。该机由输送带、SS316L计量柱塞泵、上下灌装喷嘴、液体缓冲罐、分度轮、旋盖系统组成。
优点advantage：
technical parameters
|
型号Model |
YAMP8/2 |
YAMP4/1 |
|
灌装量filling volume |
20~1000ml |
|
|
可选灌装量filling pump range |
20-100ml 50-250ml100-500ml200ml-1000ml |
|
|
盖子种类cap type |
Alternative Screw on cap, alum. ROPP cap |
|
|
产量capacity |
3600~5000bph |
2400~3000bph |
|
灌装精度Filling accuracy |
≤±1％ |
|
|
旋盖精度 capping accuracy |
≥99％ |
|
|
电源power supply |
220V 50/60Hz |
|
|
功率power |
≤2.2kw |
≤1.2kw |
|
气压air pressure |
0.4~0.6MPa |
|
|
重量weight |
1000kg |
800kg |
|
尺寸size |
2200×1200×1600 |
2000×1200×1600 |
