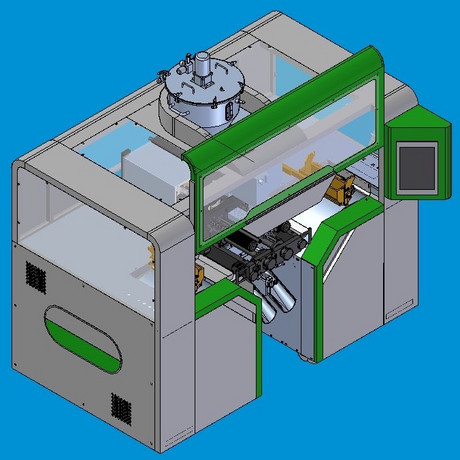

New generation die roller type soft gelatin capsule encapsulation machine SEC-126S, its the super servo system huge capacity full automatic intelligent mode, different with the world all current servo system, its brand new servo motor and control system, making SEC-126S soft capsule encapsulation machine easily to realize the high speed and huge capacity encapsulation soft capsules. Its recognized as the current world highest speed/biggest capacity softgel encapsulation machine and the most stable servo system machine.
- No reducer anymore, largely increasing the wholy torsional stiffness, not only better reflect the precision of servo control, but also reduce the decreasing output yeild caused by reducer wearing; thoroughly eliminate the problem of die roller zero injection timing error (injection timing malposition), which is happening on most servo softgel machine that currently on market, during the high speed softgel encapsulation, which is caused by the gap existing at reducer and gear insufficient torsional stiffness.
- By using the Germany Beckhoff special customized control system, this system is widely used for the high level stage machinery control system, more stable, more reliable, and more intelligent.
- Medicine material filling pump is by no impacting pump mode, its noise is very very small, and longer service on parts, the most advantage of no impacting is, equipment vibration is almost eliminated, creating very good basic for the high speed stable production.
- Die roll set formula cards function, after normal use die roll set installed, it can call the datas, automatic do and align injection timing.
- Automatic correct the wedge location of medicine material injection, with function of manual fine adjustment.
- Fill weight online digital adjusting.
- Gelatin ribbon thickness online digital adjusting, automatic track (monitoring and adjustment), no need people manually intervene.

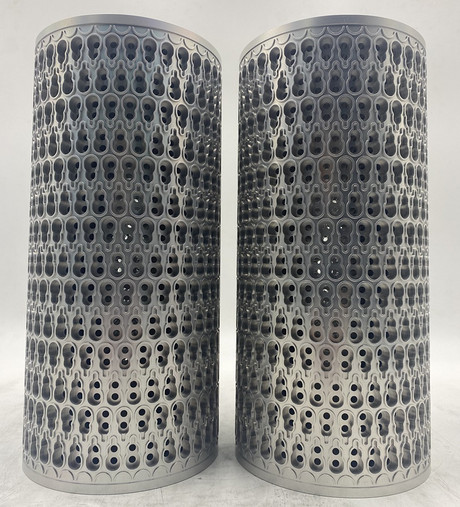

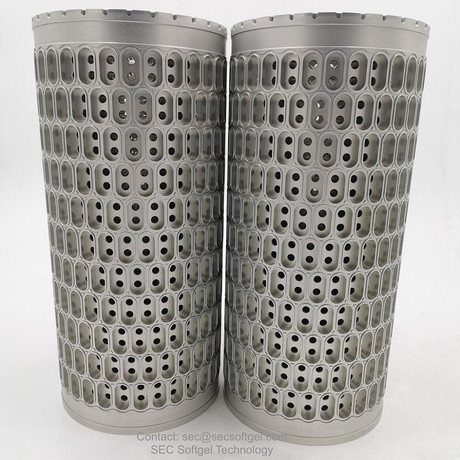

- Die roller dimension: Φ150mm x 320mm (Φ6" x 12.6")
- Die roller rotary speed: 1-10RPM
Oval 8 (fill 400-450mg), above 285,600 capsules/hour, on normal oil fill.
- Piston: 32 pcs (16pcs x 2)
- Bigger ribbon drum diameter help for ribbon forming and cooling, thinner ribbon water jacket help for fast relevant setting of temperature change, speed adjustable on ribbon air blowing via touch screen.
- With relevant 20 patents on one softgel encapsulation machine, its the real high technology.
- Ribbon drum cooling system by external water chiller circulation system, reduce the maintenance work of cooling agent pipe.
- Fill error: <±1.5% (fill bigger than 300mg) (same error <±1.5% for fill smaller than 300mg by changing another fill medicine pump)
- Fill pump has gap smaller than 0.005mm, reduce possibility of fill material leak.
- Diameter error of piston plunger smaller than 0.003mm, ensure the fill precision.
- Double air cylinder adding pressure on front and back, independent switch and pressure adjusting valve, it can precisely control the amount of pressure, largely reduce the die roll damage caused by overpressure or not even on front and back.
- Patent die roll cold air system(optional configuration), effectively reduce the temperature rising caused by die roll long time working, at the same time reduce the temperature of soft capsule, reduce happening of soft capsule sticky.
- Patent mechanical location limit structure, better ensuring equipmetn working safely.
- Patent symmetrical fill volume structure, ensuring the adaptability to various types of fill material.
- Machine head die roll base, patent structure manufacturing by confidential and better process method, enough precess precision ensured, to better ensure the stability of die roll shaft and longer service life, longer MTBF period.
Welcome to contact our professional sales engineer for further support at sec@secsoftgel.com
