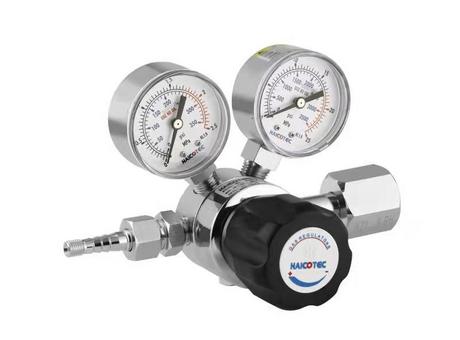

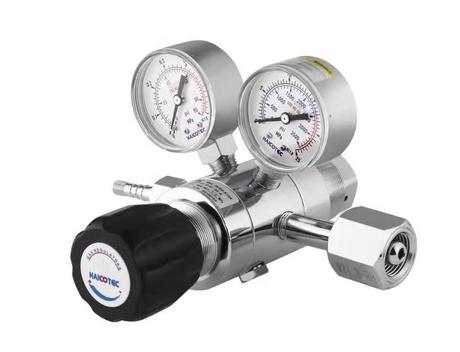

气体减压阀

更新时间：2025-06-19

价格：面议

品牌：海科智创

型号： G01

立即询盘

产品详情

产品名称：气体减压阀

产品分类：压力仪表

产品关键词：减压阀

是否为生产商：是

主要销售市场：中国

品牌：海科智创

型号： G01

产品描述：

G01型减压阀

G01 Gas regulators

G01型高压单级标准流量减压阀，单级式调压结构；适用于非腐蚀性气体等。

G01 High-Pressure Single-Stage Standard Flow Gas regulators Single-stage pressure regulation structure; suitable for non-corrosive gases, etc.

适用范围

实验室

分析仪器

一般工业气体

工厂设备

Applications

Laboratories

Analytical instruments

General industrial gases

Factory equipment

技术参数

最大输入压力：3000 psig

可控输出压力：0至15/24/35/60/90/150/240/350 psig

工作温度：-10至＋60℃

阀体螺纹： NPT 1/4" F

Technical Specifications

Maximum inlet pressure: 3000 psig

Controlled outlet pressure: Adjustable from 0 to 15/24/35/60/90/150/240/350 psig

Operating temperature: -10 to +60°C

Valve body thread: NPT 1/4" F

部件材质

阀体、提升阀针、提升阀座：HPb59-1

提升阀密封垫： NBR / EPDM

膜片： NBR / EPDM

Material Composition

Valve body： HPb59-1 (high-lead brass)

valve needle, valve seat: SUS316L/SUS304

Valve seal: PCTFE/PCTFE

Diaphragm: NBR / EPDM

外形安装尺寸 Installation Dimensions

产品特点

单级式调压结构

纯净水清洗

进口采用不锈钢金属过滤网，带前面板安装孔

采用精度1.6KL压力表

Features

Single-stage pressure regulation design

Purified water cleaning process

Inlet equipped with stainless steel mesh filter and front panel mounting holes

Precision 1.6KL pressure gauge

【参考】为产品改良而未提前通知变更的尺寸，请与我公司联系了解。

Additional Notes: For customized modifications or dimensional changes, contact our company for confirmation

【注】1、使用压力应该在压力表全量程的60％以内。

2、1MPa=10bar=9.87atm=145.03psig=10.2kg/cm²=7500mmHg

Notes

1. Operating pressure should be within 60% of the full scale** of the pressure gauge.

2. Unit conversion: 1 MPa = 10 bar = 9.87 atm = 145.03 psig = 10.2 kg/cm² = 7500 mmHg.
