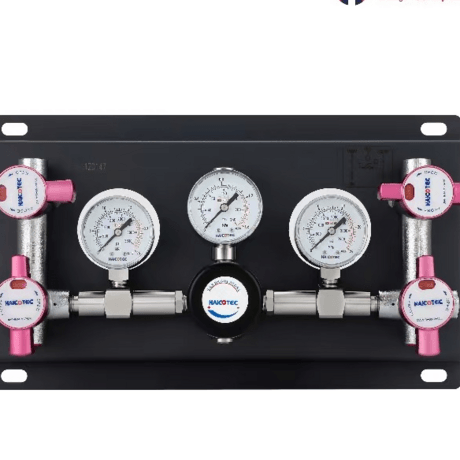

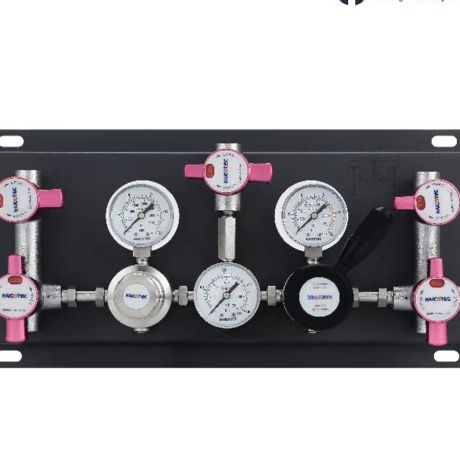

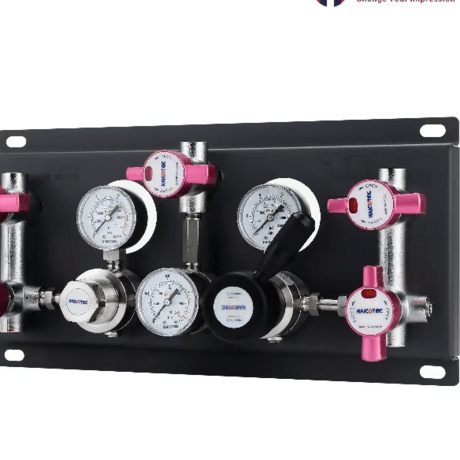

CAS113R型半自动切换供气装置
CAS113R Semi-automatic Switching Gas Supply Device
CAS113R型半自动切换供气装置是采用主供气和备用气之间设定压力差进行自动切换，从而实现不间断供气；适用于高纯气体、标准气体、一般腐蚀性气体等。
The CAS113R semi-automatic switching gas supply device automatically switches between the main gas supply and the backup gas based on a set pressure difference, ensuring uninterrupted gas supply. It is suitable for high-purity gases, standard gases, and general corrosive gases, etc.
适用范围：实验室、气体色谱仪器、测试仪器设备、气体管路项目
Application scope: laboratories, gas chromatography instruments, testing instrument equipment, gas pipeline projects
技术参数：最大输入压力3000psig
可控输出压力：0至35/60/90/150/240/350/600/900psig
工作温度：-20至+70℃
泄漏率：2*10-8atm cc/sec He
Technical parameters: Maximum input pressure: 3000 psig
Controllable output pressure: 0 to 35/60/90/150/240/350/600/900 psig
Operating temperature: -20 to +70℃
Leakage rate: 2×10-8 atm cc/sec He
部件材质：开关阀、连接件（连接介质部位）：SUS316
减压阀、开关阀密封垫：PTFE/PCTFE/PEEK
减压阀、开关阀膜片：SUS316L/Hc-22
Component materials: Switch valve, connection parts (gas contact parts): SUS316
Pressure reducing valve, switch valve gasket: PTFE/PCTFE/PEEK
Pressure reducing valve, switch valve diaphragm: SUS316L/Hc-22
产品特点：模块化设计，易于配套安装
可加配排空装置、外置安全阀、扩展瓶位、压力传感报警等
选用分析级不锈钢减压阀，装置整体密封测试和耐压测试
采用精度1.6KL压力表
Product features: Modular design, easy to install and match
Optional accessories: Exhaust device, external safety valve, additional gas cylinder position, pressure sensor alarm, etc.
Equipped with analytical grade stainless steel pressure reducing valve, the device undergoes overall sealing test and pressure resistance test
Precision 1.6KL pressure gauge is adopted
【参考】为产品改良而未提前通知变更的尺寸，请于我公司联系了解
【Reference】For dimensions changed due to product improvement without prior notice, please contact our company for details.
【注】1、使用压力应该在压力表全量程的60%以内。
2、1MPa=10bar=9.87atm=145.03psig=10.2kg/cm²=7500mmHg
【Note】1. The operating pressure should be within 60% of the full scale of the pressure gauge.
2. 1 MPa = 10 bar = 9.87 atm = 145.03 psig = 10.2 kg/cm² = 7500 mmHg
