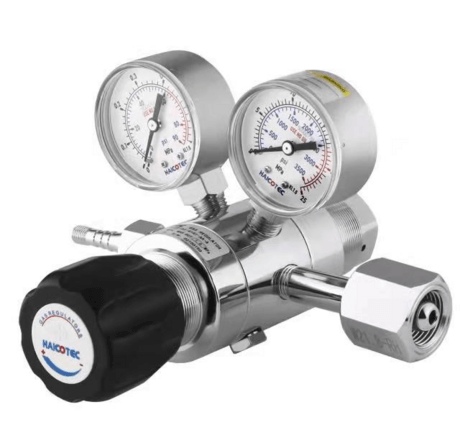

气体双级减压阀

更新时间：2025-06-19

价格：面议

品牌：海科智创

型号： G02T

立即询盘

产品详情

产品名称：气体双级减压阀

产品分类：压力仪表

产品关键词：减压阀

是否为生产商：是

主要销售市场：中国

品牌：海科智创

型号： G02T

产品描述：

G02T型双级减压阀

G02T Type Two-stage Pressure Reducing Valve

G02T型双级标准流量减压阀，双极式调压结构，输出压力更稳定；适用于非腐蚀性气体等

G02T type two-stage standard flow pressure reducing valve, with a two-stage pressure regulating structure, provides more stable output pressure. It is suitable for non-corrosive gases, etc.

适用范围：实验室、分析仪器、一般工业气体、工厂设备

Application scope: laboratories, analytical instruments, general industrial gases, factory equipment

技术参数：最大输入压力：3000psig

可控输出压力：0至15/24/35/60/90/150/240psig

工作温度：-10至+60℃

阀体螺纹：NPT1/4”F

Technical parameters: Maximum input pressure: 3000 psig
Controllable output pressure: 0 to 15/24/35/60/90/150/240 psig
Operating temperature: -10 to +60℃
Valve body thread: NPT 1/4”F

部件材质：阀体、提升阀针、提升阀座：HPb59-1

提升阀密封垫：NBR/EPDM

膜片：NBR/EPDM

Component materials: Valve body, lift valve needle, lift valve seat: HPb59-1
Lift valve sealing gasket: NBR/EPDM
Diaphragm: NBR/EPDM

产品特点:双极式调压结构结构，输出压力更精确、更稳定。

纯净水清洗

进口采用不锈钢金属过滤网

采用精度1.6KL压力表

Product features: Two-stage pressure regulating structure for more accurate and stable output pressure.
Purified water washable
Inlet with stainless steel metal filter screen
Equipped with 1.6KL precision pressure gauge

【参考】为产品改良而未提前通知变更的尺寸，请与我公司联系了解。

[Reference] For dimensions changed due to product improvement without prior notice, please contact our company for details.

【注】1、使用压力应该在压力表全量程的60%以内

2、1MPA=10bar=9.87atm=145.03psig=10.2kg/cm²=7500mmHg

[Note] 1. The operating pressure should be within 60% of the full scale of the pressure gauge.
2. 1 MPA = 10 bar = 9.87 atm = 145.03 psig = 10.2 kg/cm² = 7500 mmHg

公司简介

公司简介关于HAICOTEC海科智创(天津)科技有限公司是一家专业从事集设计研发生产一体的生产型企业，专注于高纯管阀件。产品主要有超高纯减压阀、超高纯阀门管件、气体控制设备等相关仪器仪表设备。企业引进和吸纳先进设计与超高精密加工工艺制造技术，随着半导体与测控设备等相关行业对气体吸附与纯度要求越来越高，公司对产品工艺进行系统性提高并对钝化、镀金、惰性化、电解抛光等高难度工艺处理实现自主可控，并在半导体、太阳能、测控设备等相关行业生产线中运用。公司秉持“品质至上、一流服务、不断创新“的设计理念，在不断变化的国内与国际市场中为客户提供高品质的产品，不断创新。同时可为客户设计定制特殊阀门，产品广泛应用于半导体、太阳能、生物制药、医疗、工业、石化、实验室、测控设备、环境监测等领域。每种产品都经过精密的仪器检测，实行并严格执行ISO 9001管理标准，产品符合GB、ANSI、BS、JIS、SEMI、ASTM、CE标准 Company profileAbout HAICOTECHaicotec (Tianjin) Technology Co., Ltd. is a professional enterprise engaged in design, development and production, focusing on high purity pipe valve parts. The main products are UHP gas regulators, UHP valve fittings, gas control equipment and other related instruments and instruments.The company has introduced and absorbed advanced design and ultra-high precision machining process manufacturing technology. As the semiconductor and measurement and control equipment and other related industries have increasingly high requirements for gas adsorption and purity, the company has systematically improved the product process and achieved independent control of difficult processes such as passivation, gold plating, inerting and electrolytic polishing. And used in semiconductor, solar energy, measurement and control equipment and other related industry production lines. Adhering to the design concept of "quality first, first-class service, continuous innovation", the company provides customers with high-quality products and continuous innovation in the constantly changing domestic and international markets. At the same time, we can design and customize special valves for customers, and our products are widely used in semiconductor, solar energy, biopharmaceutical, medical, industrial, petrochemical, laboratory, measurement and control equipment, environmental monitoring and other fields.Each product has been tested by precise instruments, the implementation and strict implementation of ISO 9001 management standards, products in line with GB, ANSI, BS, JIS, SEMI, ASTM, CE standards

企业规模（人）： 30至39

业务类型：制造商

成立日期： 2021年5月年

年销售额：不愿意公开

主营产品类别：机械配件,流体设备,实验室仪器及装备,机械仪表
