首页制药产品大全机械仪表压力仪表 C12T型双级减压阀

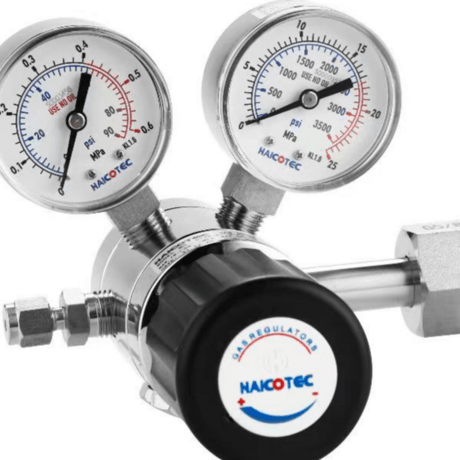

C12T型双级减压阀

更新时间：2025-06-19

价格：面议

品牌：海科智创

型号： C12T

立即询盘

产品详情

产品名称： C12T型双级减压阀

产品分类：压力仪表

产品关键词：减压阀,气体,双级

是否为生产商：是

主要销售市场：中国

品牌：海科智创

型号： C12T

产品描述：

C12T型双级减压阀

C12T型双级标准流量不锈钢减压阀，双级式金属膜片调压结构：适用于高纯气体、一般腐蚀性气体，标准气体等。

适用范围：实验室、气体色谱仪器、石油化工、电厂设备、测试仪器设备

技术参数：最大输入压力：3000psi

可控输出压力：0至15/24/35/60/90/150/240/250psi

工作温度;-20至+70℃

阀体螺纹：NPT1/4”F

泄漏率：2*10-8atm cc/sec He

部件材质：阀体、提升阀针、提升阀座：SUS316L

提升阀密封垫：PTFE/PGTFE/PEEK

膜片：SUS316L/Hc-22

产品特点：波纹式无穿孔膜片降低产品泄漏率，提高调节压力灵敏度

双级式调压结构，输出压力更精确、更稳定

进口采用不锈钢金属过滤网

采用精度1.6KL压力表

【参考】为产品改良而未提前通知变更的尺寸，请于我公司联系了解

【注】1、使用压力应该在压力表全量程的60%以内

2、1MPA=10bar=9.87atm=145.03psig=10.2kg/cm²=7500mmHg

C12T Double-stage Pressure Reducing Valve
C12T Double-stage Standard Flow Stainless Steel Pressure Reducing Valve, with a double-stage metal diaphragm pressure regulating structure: suitable for high-purity gases, general corrosive gases, standard gases, etc.
Application scope: laboratories, gas chromatography instruments, petrochemicals, power plant equipment, testing instrument equipment
Technical parameters: Maximum input pressure: 3000 psi
Controllable output pressure: 0 to 15/24/35/60/90/150/240/250 psi
Operating temperature: -20 to +70℃
Valve body thread: NPT 1/4”F
Leakage rate: 2×10-8 atm cc/sec He
Component materials: Valve body, lift valve needle, lift valve seat: SUS316L
Lift valve seal gasket: PTFE/PGTFE/PEEK
Diaphragm: SUS316L/Hc-22
Product features: The corrugated non-porous diaphragm reduces the product leakage rate and improves the pressure regulation sensitivity.
The double-stage pressure regulating structure ensures more accurate and stable output pressure.
The inlet is equipped with a stainless steel metal filter screen.
It uses a 1.6KL precision pressure gauge.
[Reference] For size changes made for product improvement without prior notice, please contact our company for details.
[Note] 1. The operating pressure should be within 60% of the full scale of the pressure gauge.
2. 1 MPA = 10 bar = 9.87 atm = 145.03 psig = 10.2 kg/cm² = 7500 mmHg
